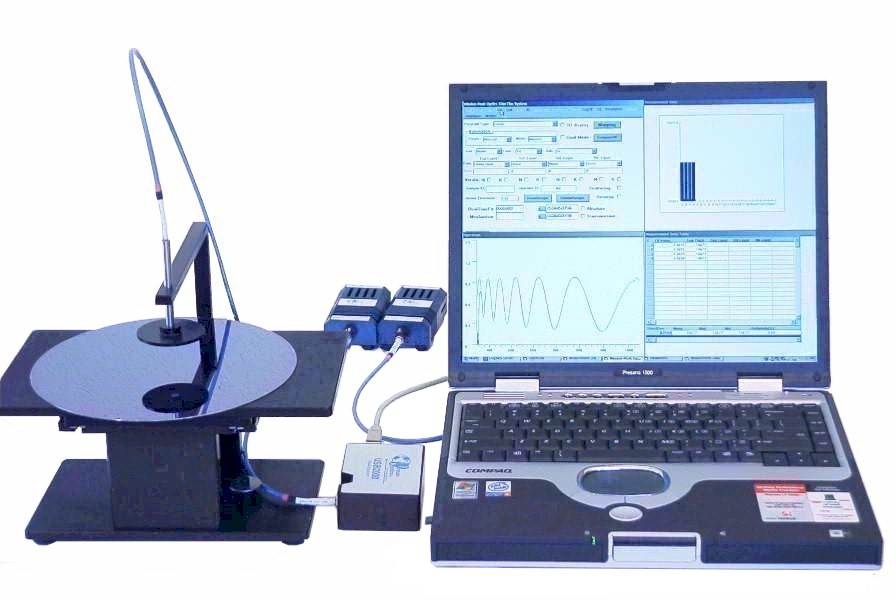

The MP100-ST system is an enhanced version of our MP100-S portable system with a small manual XY stage and removable optical probe. It is easy to carry and goes anywhere the included notebook computer goes.

MP100-ST additionally includes a Transmisison module. It can be used to calculate Transmissivity and uses special modes to further increase the accuracy of those measurement.

Boasting Transmission features while still being portable and competitively-priced, it is a very popular model that is applicable for many of today's common and specific Industrial measurement needs.
  • Laptop Computer
  • Ocean Optics Spectrometer, Visible to NIR
  • 6x4" Manual Stage
  • Adjustable Measurement Probe Attachment
  • Transmission Module
  • Transmission Light Source
  • Wide Wavelength Range Spectrometer
  • Customized Optical Fiber Cables (including non-corrosive monocoil jacket cables)
  • 8x8" Manual Stage
  • Desktop (Small Form or All-in-One PC)
  • Micro-Spot Probe Attachment

  • Ultra Portable
  • Great Value
  • Simple Operation
  • Versatile
  • Transmission Measurement

Scanning Range:
380nm to 950nm

Spectrum Resolution:
2 nm
​
Precision:
0.2 nm
​
Measurement Speed:
2 seconds per Measurement

Measurement Spot Size:
3 to 5 mm
